Ein Team mit LACP (dynamic load balancing) einrichten…
Meine funktionierende Konfiguration
- HPE ProLiant DL360 G7 (4 x 1Gbit Uplink, HPE LOM Broadcom)
- HPE FlexFabric 5700 (2 x 5700 32XGT im IRF Stack, Software Release 2432P06, Boot ROM 157, Version B)
- Server sollte im VLAN 51 platziert werden (hier als hybrid Ports konfiguriert, da evtl. weitere VLAN forwards möglich sein sollten)

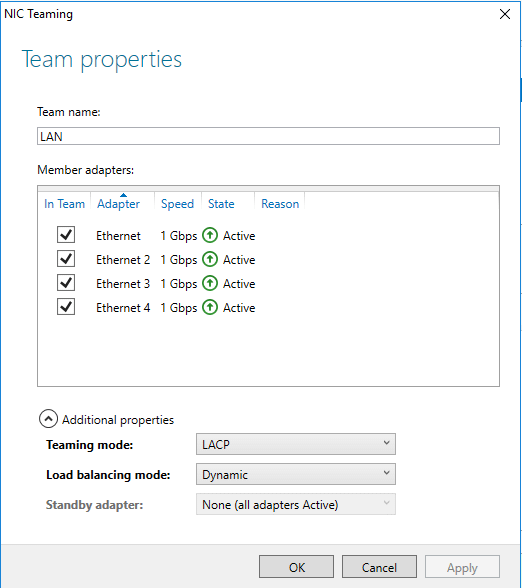

Serverseite
Switchseite
Server-Interfaces:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 |
interface Ten-GigabitEthernet1/0/4 description Server LAN 1 port link-type hybrid undo port hybrid vlan 1 port hybrid vlan 51 untagged port hybrid pvid vlan 51 undo jumboframe enable port link-aggregation group 201 interface Ten-GigabitEthernet1/0/8 description Server LAN 2 port link-type hybrid undo port hybrid vlan 1 port hybrid vlan 51 untagged port hybrid pvid vlan 51 undo jumboframe enable port link-aggregation group 201 interface Ten-GigabitEthernet2/0/4 description Server LAN 3 port link-type hybrid undo port hybrid vlan 1 port hybrid vlan 51 untagged port hybrid pvid vlan 51 undo jumboframe enable port link-aggregation group 201 interface Ten-GigabitEthernet2/0/8 description NOEVeeam-Backup LAN 4 port link-type hybrid undo port hybrid vlan 1 port hybrid vlan 51 untagged port hybrid pvid vlan 51 undo jumboframe enable port link-aggregation group 201 |
Bridge Aggregation Group (hier ID 201):
interface Bridge-Aggregation201 description TEAM Server port link-type hybrid undo port hybrid vlan 1 port hybrid vlan 51 untagged port hybrid pvid vlan 51 link-aggregation mode dynamic link-aggregation load-sharing mode source-mac
Verbindungssatus checken:
|
1 2 3 4 5 6 7 |
display link-aggregation verbose Bridge-Aggregation 201 Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing Port Status: S -- Selected, U -- Unselected, I -- Individual, * -- Management port Flags: A -- LACP_Activity, B -- LACP_Timeout, C -- Aggregation, D -- Synchronization, E -- Collecting, F -- Distributing, G -- Defaulted, H -- Expired |
Aggregate Interface: Bridge-Aggregation201 Aggregation Mode: Dynamic Loadsharing Type: Shar Management VLAN : None System ID: 0x8000, ec9b-8b19-47bd Local: Port Status Priority Oper-Key Flag ——————————————————————————– XGE1/0/4 S 32768 6 {ACDEF} XGE1/0/8 S 32768 6 {ACDEF} XGE2/0/4 S 32768 6 {ACDEF} XGE2/0/8 S 32768 6 {ACDEF} Remote: Actor Partner Priority Oper-Key SystemID Flag ——————————————————————————– XGE1/0/4 2 0 0 0x0 , 101f-7436-3c86 {ABCDE} XGE1/0/8 3 0 0 0x0 , 101f-7436-3c86 {ABCDE} XGE2/0/4 4 0 0 0x0 , 101f-7436-3c86 {ABCDE} XGE2/0/8 1 0 0 0x0 , 101f-7436-3c86 {ABCDE}
